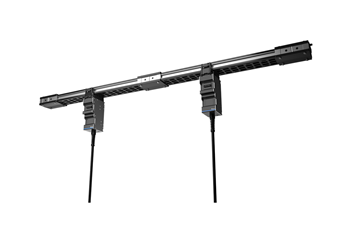

Busway System - BR Series

仕様

1. Model
2. BR-250A

3. ---

4. 概要
5. Rating:
   250 A
6. Rated Voltage:
   1000 V
7. Frequency:
   50/60 Hz
8. Conductor:
   Copper purity: 99.9% Conductivity: 99.9% IACS
9. Insulation Material:
   Epoxy cast resin
10. Fire Protection:
    UL94 V0
11. Ingress Protection Rating:
    IP20 / IP55 (optional)
12. Plug-in Unit Rating:
    32 A (Rh Type)
13. Ambient Temperature:
    -20 ℃ / +50 ℃ avg. 35 ℃
14. Dimensions (W x H x D):
    Busway section 117 x 58 mm
    Plug-in Unit (Rh Type) 100 x 250 mm

15. ---

16. 標準規格
17. Safety:
    IEC 61439, UL857

18. ---

19. 仕様は予告なく変更する場合があります。
